Computer Memory & their Types

Computer Memory

Computer Memories

Computer Memory/storage refers to the various methods and devices used to retain digital data for later retrieval and use. It plays a fundamental role in computing, allowing users to store, access, and manipulate data effectively.

There are several types of computer storage, each with its own characteristics and purposes. Primary storage, such as Random Access Memory (RAM), is volatile memory that holds data temporarily while the computer is running. i.e. all data is lost when the power is turned off. On the other hand, secondary storage, like hard disk drives (HDDs), solid-state drives (SSDs), and optical discs, stores data persistently even when the computer is powered down. Secondary storage devices typically offer larger storage capacities compared to primary storage but may have slower access times. In recent years, cloud storage has gained popularity as a convenient and scalable solution for storing data remotely over the internet. Cloud storage services allow users to access their files from anywhere with an internet connection, making it ideal for data backup, collaboration, and sharing. Advancements in storage technology have led to increases in storage capacity, speed, and reliability, enabling users to store vast amounts of data efficiently. From personal documents and multimedia files to enterprise databases and virtual machines, computer storage plays a crucial role in modern computing, shaping how we manage and interact with digital information.

Computer Storage

Offers the ability to store all necessary files and data Permanently , such as the capacity of the computer's hard drive/SSD/Card/Optical disk.

Computer Memory

Offers your workspace, memory holds data temporarily while the computer is running. i.e. all data is lost when the power is turned off. (such as the quantity of RAM present in the computer).

Memory Unit

A memory unit in computing refers to a component or device used for storing digital data temporarily or permanently. This capacity is expressed in terms of byte

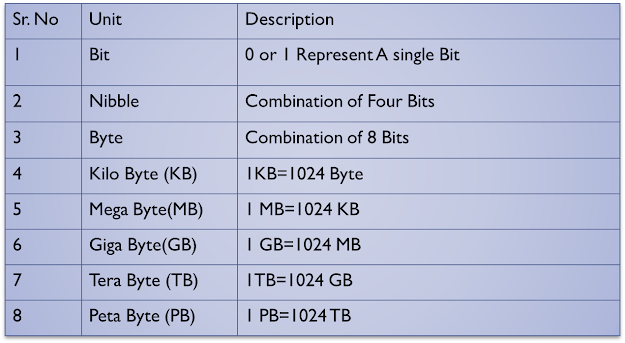

Memory Units

Types of Computer Memories

Primary Memory

Primary memory, also known as main memory or RAM (Random Access Memory), is a crucial component in computing systems. It serves as the immediate workspace for the CPU, storing data and instructions that are actively being used by the computer. Unlike secondary storage devices such as hard drives, primary memory is volatile, meaning it loses its contents when the power is turned off. RAM offers fast access times, enabling quick retrieval and manipulation of data during program execution. Its capacity determines the amount of data a computer can work with simultaneously, making it a fundamental factor in system performance and multitasking capabilities.

Secondary Memory

Secondary memory, also known as auxiliary storage, refers to non-volatile storage devices used to store data for long-term retention. Unlike primary memory (RAM), which is volatile and loses its contents when power is turned off, secondary memory retains data even when the power is disconnected. Main Secondary storage devices are hard disk drives (HDDs), solid-state drives (SSDs), optical discs (like CDs and DVDs), USB flash drives, and magnetic tapes. Secondary memory provides high-capacity storage for files, applications, and operating systems, allowing users to access and store data beyond the limitations of primary memory. It is commonly used for data backup, archival storage, and transferring files between computers.

Difference Between Primary & Secondary Memory

Primary Memory	Secondary Memory
Store intermediate data which is necessary to run the computer	Store data on long term basis
Volatile Memory(RAM & Cache) i.e. Data is lost when power in tuned off	Non Volatile Memory(HDD) i.e. Data is permanent in each and every condition
Directly accessed by CPU	Directly Not accessed by CPU
Faster Data Access	Slower Data Access
Smaller in size	Larger in size
Directly installed on MB	Installed on MB by a cable
Example:- RAM, Cache	Example:- HDD

Type of Computer Memory Devices

Computer memory/Storage devices can be classified into several categories based on various criteria such as their data access method, volatility, and physical characteristics. Here are some common classifications:

1. Primary Storage:

- Random Access Memory (RAM): Volatile memory used for temporary data storage during program execution.

- Cache Memory: High-speed memory located between the CPU and RAM, used to store frequently accessed data for faster processing.

- Registers: Fastest form of memory located within the CPU, used to store data and instructions currently being processed.

Computer Memories



2. Secondary Storage:

- Hard Disk Drives (HDDs): Magnetic storage devices with high capacities used for long-term data storage.

- Solid-State Drives (SSDs): Storage devices that use flash memory to store data, offering faster access times and greater reliability than HDDs.

- Optical Discs: Storage media such as CDs, DVDs, and Blu-ray discs used for storing data, music, videos, and software.

- USB Flash Drives: Portable storage devices that use flash memory to store data and can be easily connected to computers via USB ports.

- Magnetic Tapes: They are frequently utilized as sequential access storage devices for backup and archival purposes, owing to their cost-effectiveness and large storage capacity.

3. Tertiary Storage:

- Cloud Storage: Remote storage services that allow users to store and access data over the internet, offering scalability, accessibility, and redundancy.

Each type of storage device has its own advantages and limitations, making them suitable for different applications and use cases in computing environments.

CPU Register

CPU registers are compact, rapid storage areas found inside the central processing unit (CPU) of a computer. They are used to store temporary data and instructions that the CPU needs to access quickly during program execution. These registers are a fundamental component of the CPU architecture and play a crucial role in performing arithmetic and logic operations, as well as in data manipulation. Data registers are typically used to hold operands, intermediate results, and final results of arithmetic and logical calculations. They are directly accessible by the CPU and are used by the arithmetic and logic unit (ALU) to perform various operations, such as addition, subtraction, multiplication, division, bitwise operations, and comparison. The size and number of data registers vary depending on the CPU architecture. Common data register sizes include 8-bit, 16-bit, 32-bit, and 64-bit registers. Additionally, modern CPUs often include multiple general-purpose data registers, allowing for parallel execution of instructions and improved performance. Data registers are named based on their purpose and usage In summary, CPU data registers are essential components of the CPU architecture, providing temporary storage for data and facilitating efficient execution of instructions and operations within the CPU. They play a critical role in processing data and performing computations in computer systems.

Cache Memory

Cache memory is a small, high-speed memory unit located between the CPU and main memory in a computer system. Its primary purpose is to store frequently accessed data and instructions, allowing the CPU to access them quickly, thereby improving overall system performance.

Cache memory operates on the principle of locality, which states that programs tend to access the same memory locations repeatedly or nearby locations in a short period of time. By storing frequently accessed data and instructions in cache memory, the CPU can reduce the time it takes to retrieve them from slower main memory.

There are several types of cache memory, including:

1. Level 1 (L1) Cache:

L1 cache is the smallest and fastest cache memory located directly on the CPU chip itself. It is divided into separate instruction and data caches to improve performance. L1 cache typically has very low latency, allowing the CPU to access data and instructions quickly.

2. Level 2 (L2) Cache:

L2 cache is larger than L1 cache and is located on the CPU chip or on a separate chip close to the CPU. It serves as a secondary cache to L1 cache and helps reduce the number of accesses to slower main memory. L2 cache has higher latency than L1 cache but still offers faster access times compared to main memory.

3. Level 3 (L3) Cache:

L3 cache is even larger than L2 cache and is often shared among multiple CPU cores within a processor or across multiple processor cores in a multi-core system. It provides additional caching for frequently accessed data and instructions shared among the CPU cores. L3 cache typically has higher latency than L1 and L2 cache but still offers faster access times compared to main memory.

4. Unified Cache:

Some systems use a unified cache architecture, where a single cache memory is used to store both instructions and data. Unified cache can simplify cache management and improve overall efficiency in certain scenarios.

Cache memory is a critical component of modern computer systems, helping to bridge the speed gap between the CPU and main memory. By storing frequently accessed data and instructions closer to the CPU, cache memory significantly reduces the time it takes for the CPU to access them, thereby improving overall system performance and responsiveness.

Random Access Memory(RAM)

RAM, or Random Access Memory, is a type of volatile memory used in computers and other electronic devices to store data and program instructions that are currently being used or processed by the CPU. Unlike non-volatile storage devices like hard disk drives (HDDs) or solid-state drives (SSDs), RAM loses its stored data when power is turned off.

There are multiple categories of RAM, each possessing its own set of features and applications.

1. Dynamic RAM (DRAM):

DRAM is the most common type of RAM used in modern computers. DRAM requires constant refreshing of its memory cells to maintain data integrity, which is why it's called "dynamic." Despite being slower and consuming more power than other types of RAM, DRAM is preferred for its high density and relatively low cost.

2. Static RAM (SRAM):

SRAM is faster and more expensive than DRAM. It stores data using flip-flop circuits, which do not require refreshing like DRAM. This makes SRAM faster and more power-efficient, but also more expensive and less dense. SRAM is commonly used in applications that require high-speed access to small amounts of data, such as CPU cache memory.

3. Synchronous Dynamic RAM (SDRAM):

SDRAM synchronizes with the system clock, allowing for faster data transfer rates compared to asynchronous DRAM. It is commonly used in computers as main memory (RAM) due to its improved performance. Variants of SDRAM include DDR (Double Data Rate) SDRAM, DDR2 SDRAM, DDR3 SDRAM, and DDR4 SDRAM, with each generation offering increased performance and efficiency.

4. Rambus Dynamic RAM (RDRAM):

RDRAM was developed by Rambus Inc. as a high-speed alternative to SDRAM. It uses a high-speed serial interface to achieve faster data transfer rates. However, RDRAM was expensive and faced compatibility issues, leading to limited adoption in the consumer market.

5. Non-Volatile RAM (NVRAM):

NVRAM retains stored data even when power is turned off, similar to non-volatile storage devices like SSDs and HDDs. It is used in applications where data persistence is critical, such as in memory caches and storage controllers. Examples of NVRAM include Ferroelectric RAM (FeRAM), Magnetoresistive RAM (MRAM), and Phase-Change RAM (PRAM).

Overall, RAM plays a crucial role in the performance and responsiveness of computer systems, providing temporary storage for data and program instructions that are actively being processed by the CPU. The choice of RAM type depends on factors such as performance requirements, cost considerations, and application needs.

Optical Disk

Optical disks and media represent a significant form of storage in computing. These discs, such as CDs, DVDs, and Blu-ray discs, utilize optical technology to store and retrieve data. They consist of a thin layer of reflective material coated with a substrate, onto which data is encoded in a series of pits and lands.

The pits represent "0" and the lands represent "1" in binary computing. The disc drive reads the bits by utilizing a laser beam to differentiate between the pits and lands based on the level of scattering or deflection that occurs when the beam of light interacts with the disc's surface.

DVDs utilize a 650 nm wavelength laser diode light, while CDs use 780 nm. This difference allows for smaller pits to be etched on the media surface, with DVDs having 0.74 µm pits compared to CDs' 1.6 µm, resulting in higher storage capacity for DVDs. On the other hand, Blu-ray discs, the next generation after DVDs, operate at a 405 nm wavelength and can store up to 50 GB on a dual-layer disc.

Optical memories

Pits & Land in optical memories

Magnetic Storage Devices

Magnetic storage devices are data storage devices that use magnetic fields to store and retrieve digital information. These devices store data by magnetizing specific regions on a magnetic medium, such as a magnetic disk or tape. The magnetized regions represent binary digits (0s and 1s), allowing data to be encoded and stored in a non-volatile form.

Magnetic storage devices have been a fundamental component of computing for decades, providing high-capacity, non-volatile storage for a wide range of applications, including personal computers, servers, and data centers.

In magnetic storage devices like hard disk drives (HDDs), data is organized and stored in tracks and sectors on the disk platters.

Tracks:

A track is a concentric circular path on the surface of the disk platter. These tracks are divided into a fixed number of evenly spaced sectors. Each track corresponds to a specific radius on the disk surface. Tracks closer to the center of the disk are smaller and have shorter data storage capacity compared to tracks near the outer edge of the disk.

Sectors:

A sector is a pie-shaped portion of a track. It is the smallest addressable unit of data storage on a disk. Sectors typically contain a fixed number of bytes, such as 512 bytes or 4 kilobytes (KB). The size of a sector is determined by the disk's formatting and file system. When data is written to the disk, it is stored in sectors arranged along the tracks. The disk controller manages the process of reading from and writing to specific sectors on the disk. When data is read from the disk, the disk controller locates the appropriate track and sector and reads the data stored in that sector.

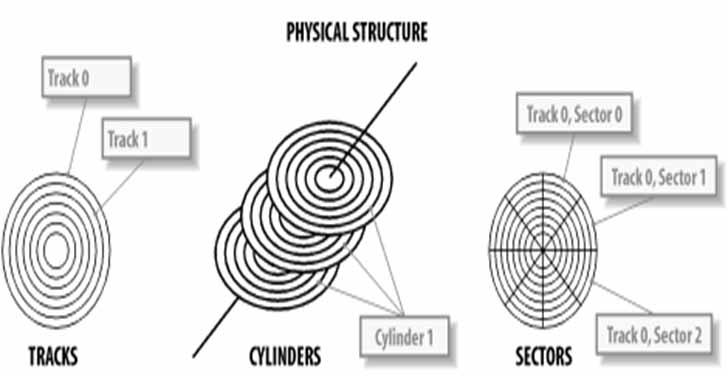

Tracks & Sectors

Overall, the organization of data into tracks and sectors allows for efficient storage and retrieval of digital information on magnetic storage devices like HDDs. This hierarchical structure enables quick and reliable access to stored data, making magnetic storage devices essential components of modern computing systems.

Common types of magnetic storage devices include:

Floppy Disk

Hard disk drive

Magnetic tape

Floppy Disk Drives

The floppy disk, often simply referred to as a "floppy," was a magnetic storage medium widely used from the late 1970s to the early 2000s for data storage and transfer. It consisted of a thin, flexible disk made of a magnetic storage medium encased in a square or rectangular plastic shell. Floppy disks were available in various sizes, with the 3.5-inch and 5.25-inch formats being the most common.

Floppy Disk

Floppy disks played a crucial role in the early days of personal computing, serving as a primary means of storing and transporting files, programs, and operating systems. They were used in a wide range of devices, including personal computers, laptops, and even some video game consoles.

Despite their popularity, floppy disks had several limitations, including relatively low storage capacity, slow data transfer rates, and susceptibility to data corruption and physical damage. With the advent of more advanced storage technologies such as CDs, DVDs, USB flash drives, and cloud storage, floppy disks gradually became obsolete, and their usage declined significantly by the early 2000s. Today, floppy disks are considered relics of a bygone era, remembered fondly by some as a symbol of early computing but largely replaced by more efficient and reliable storage solutions.

Zip Drive

The Zip drive was a popular removable storage system developed by Iomega Corporation in the 1990s. It offered higher storage capacity and faster data transfer rates compared to floppy disks, making it a convenient option for storing and transferring large files.

Zip drive

The Zip drive used proprietary Zip disks, which resembled large floppy disks but had a higher storage capacity, typically ranging from 100 MB to 750 MB. These disks featured a built-in ZIP drive mechanism that allowed users to read and write data to them using a Zip drive. They were commonly used for tasks such as data backup, file sharing, and transporting large files between computers. Despite their initial popularity, Zip drives eventually faced stiff competition from rewritable CDs, DVDs, and later USB flash drives, which offered even higher storage capacities and greater convenience. As a result, Zip drives gradually declined in usage and were eventually discontinued by Iomega in the early 2000s.

While Zip drives are no longer widely used, they remain a notable part of computing history, representing a significant advancement in removable storage technology during the 1990s.

Magnetic Tape

Magnetic tape is a type of data storage medium that consists of a long, narrow strip of plastic film coated with a magnetic material. It is used primarily for data backup, archival storage, and long-term data retention due to its high capacity and relatively low cost per gigabyte.

The structure of magnetic tape includes magnetizable particles embedded in a binder material on the surface of the tape. Data is recorded on the tape in the form of magnetized regions, with each region representing a binary digit (0 or 1). The tape is wound onto reels, and data is read from or written to the tape using a tape drive device equipped with read/write heads.

Magnetic Tape

Magnetic tape offers several advantages, including:

1. High Capacity: Magnetic tape has a high storage capacity, with modern tape cartridges capable of storing multiple terabytes (TB) of data.

2. Long-Term Archival Storage: Magnetic tape is well-suited for long-term archival storage, with data retention periods ranging from several years to decades.

3. Cost-Effectiveness: Magnetic tape provides a cost-effective solution for storing large volumes of data compared to other storage media such as hard disk drives (HDDs) or solid-state drives (SSDs).

4. Sequential Access: Data is accessed sequentially on magnetic tape, meaning that accessing data requires moving the tape to the specific location where the data is stored. While sequential access may be slower than random access, it is suitable for applications such as data backup and archival storage.

Despite advancements in other storage technologies, magnetic tape remains a vital component of data storage infrastructure for many organizations, particularly those with large-scale data storage requirements. It continues to play a crucial role in data backup, disaster recovery, and compliance with regulatory requirements for data retention.

Hard disk Drive(HDD)

A hard disk drive (HDD) is a non-volatile storage device that stores and retrieves digital data using magnetic storage and rotating disks called platters. It is a primary storage device used in most computers and electronic devices for storing operating systems, software applications, user data, and various types of media files.

Inside an HDD, one or more metal platters coated with a magnetic material are mounted on a spindle, and read/write heads are positioned above and below each platter. The platters spin at high speeds, typically ranging from 5,400 to 15,000 revolutions per minute (RPM), while the read/write heads move across the platter's surface to read and write data.

Hard disk Drive(HDD)

HDDs offer several advantages, including relatively large storage capacities, affordable pricing per gigabyte, and durability. They are available in various form factors, including 3.5-inch drives for desktop computers and 2.5-inch drives for laptops and other portable devices.

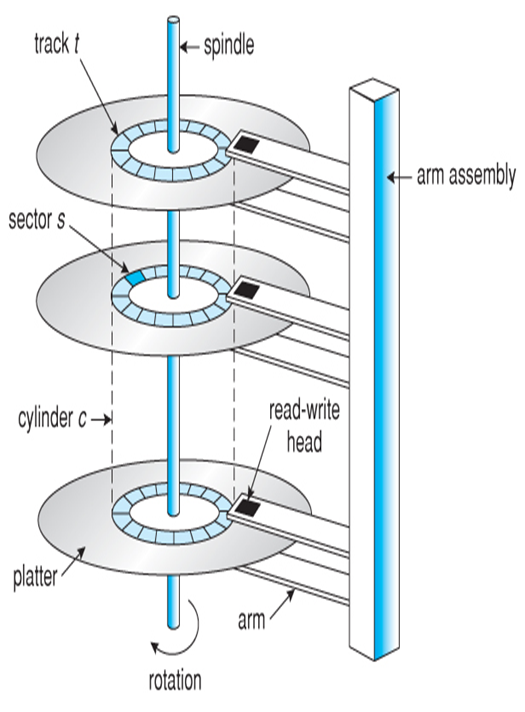

Hard disk Drive(HDD) structure

Despite their widespread use, HDDs have certain limitations, such as slower data access speeds compared to solid-state drives (SSDs), susceptibility to mechanical failure due to moving parts, and increased power consumption. However, advancements in technology have led to the development of more reliable and efficient HDDs over the years.

Overall, HDDs have played a crucial role in the evolution of computer storage, providing vast amounts of affordable and accessible storage space for a wide range of applications. While SSDs have become increasingly popular for their faster performance and lower power consumption, HDDs continue to be widely used, particularly for high-capacity storage needs in desktops, servers, and data centers.

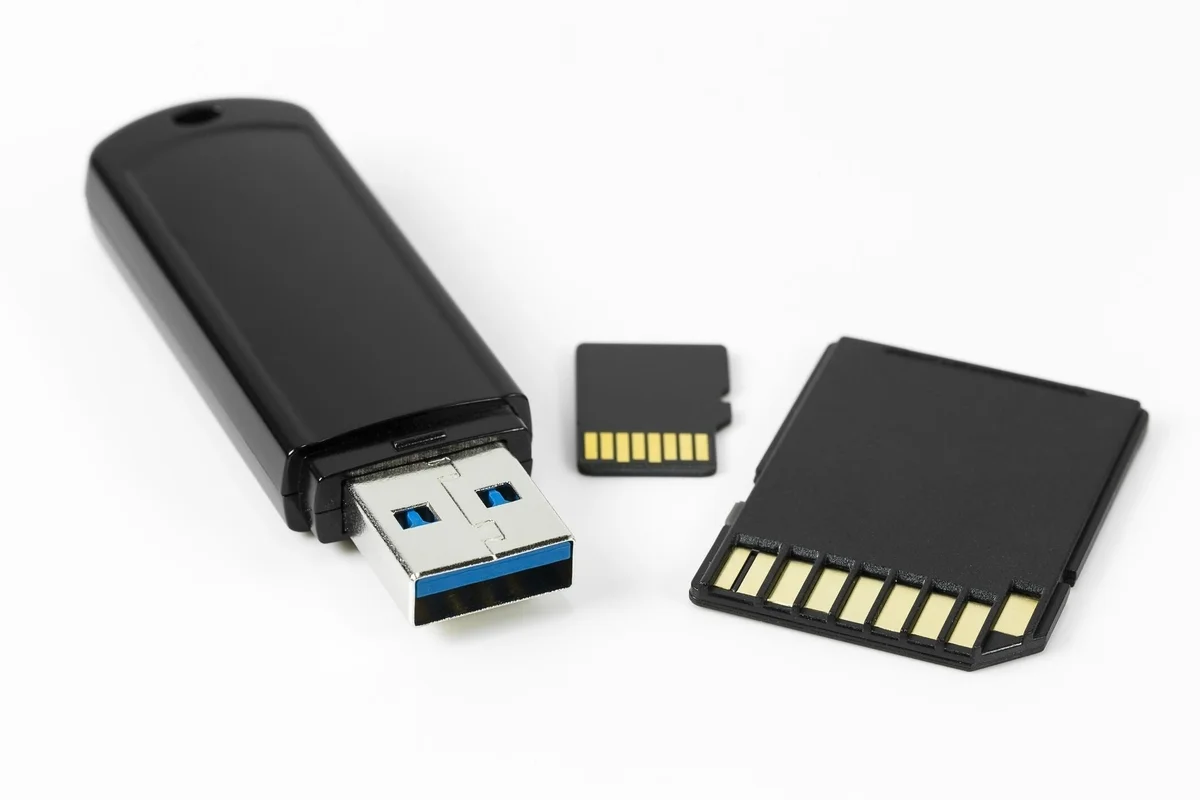

Flash Memory

Flash memory is a permanent computer storage device, It has the capability to be erased and reprogrammed electronically. It is used in a wide range of electronic devices, including USB flash drives, solid-state drives (SSDs), memory cards, and smartphones, to store data persistently even when power is turned off.

Flash Memory

Unlike traditional magnetic storage media such as hard disk drives (HDDs), which use spinning platters and magnetic read/write heads, flash memory stores data in individual memory cells made of floating-gate transistors. These transistors can be electrically programmed to store data (write operation) and electronically erased to reset them to their initial state (erase operation).

Flash memory offers several advantages, including:

Fast Read/Write Speeds: Flash memory provides fast access times and data transfer rates, making it suitable for use in high-performance storage devices such as SSDs.

Shock and Vibration Resistance: Flash memory has no moving parts, making it more resistant to physical shocks and vibrations compared to traditional hard drives.

Compact Form Factor: Flash memory chips are small and lightweight, making them ideal for use in portable devices where space is limited, such as smartphones, tablets, and memory cards.

Low Power Consumption: Flash memory consumes less power than traditional magnetic storage devices, making it suitable for use in battery-powered devices.

Durability: Flash memory can withstand a large number of read/write cycles before experiencing degradation, providing reliable long-term storage for data.

Solid State Drive(SSD)

A solid-state drive (SSD) is a type of non-volatile storage device that uses flash memory to store data, providing faster performance and greater reliability compared to traditional hard disk drives (HDDs). SSDs have no moving parts, unlike HDDs, which use spinning magnetic platters and mechanical read/write heads.

Solid State Drive(SSD)

SSDs offer several advantages over HDDs, including:

1. Faster Read/Write Speeds: SSDs can access data much faster than HDDs due to their lack of mechanical components.

2. Enhanced Durability: Since SSDs have no moving parts, they are less susceptible to physical shock, vibration, and damage. This makes them more durable and reliable, especially in portable devices like laptops and tablets.

3. Lower Power Consumption: SSDs consume less power than HDDs, leading to longer battery life in laptops and reduced energy costs in desktops and servers.

4. Silent Operation: The absence of moving parts in SSDs means they operate silently, without the noise associated with spinning disks in HDDs.

5. Compact Form Factor: SSDs are available in smaller form factors, allowing for more compact and lightweight designs in devices such as ultrabooks, tablets, and smartphones.

Despite these advantages, SSDs typically have higher costs per gigabyte compared to HDDs, making them less economical for storing large amounts of data. However, advancements in flash memory technology and manufacturing processes have led to declining prices, making SSDs increasingly affordable and accessible to consumers and businesses alike.

Overall, SSDs represent a significant advancement in storage technology, offering improved performance, reliability, and efficiency compared to traditional HDDs. They have become increasingly popular in a wide range of applications, from consumer electronics to enterprise-level storage solutions.

Conclusion

In conclusion , this blog cover a brief description of following topics

Computer memory, Primary Memory, Secondary Memory, CPU registers, Cache memory, RAM, optical Memories, HDD, Floppy Disk, Zip Drive, Flash Memories, SSD

In summary, I can say that these topics are related to Fundamental of Computer and very helpful for those who pursuing BCA,PGDCA, DCA ,'O' Level Courses from different universities

I hope this blog helps you a lot Happy learning....

FAQ(Frequently Asked Question)

What are computer memories or storage ?

Computer Memory/storage refers to the various methods and devices used to retain digital data for later retrieval and use.

What is Primary memory ?

Primary memory, also known as main memory or RAM (Random Access Memory), is a crucial component in computing systems. It serves as the immediate workspace for the CPU, storing data and instructions that are actively being used by the computer.

What is Secondary memory ?

Secondary memory, also known as auxiliary storage, refers to non-volatile storage devices used to store data for long-term retention.

What are CPU Regsister ?

CPU registers are compact, rapid storage areas found inside the central processing unit (CPU) of a computer.

What is cache memory ?

Cache memory is a small, high-speed memory unit located between the CPU and main memory in a computer system.
